Bridging Reality and Perception with Image Transformations in Anamorphic Art

Before turning a 2D to a 3D, we aim to morph a pile of pixel into something that has shape, and then into something that has both texture and shape. To do so, I interpolate color from the rest of the image onto the object and reverse the process to mimic the transformation from background to object.

The first step is to erase the object form the image, this could easily be done using inpaint and Gaussian blur, while there are still some artifacts (like the diagonal line due to inpainting), it is acceacptable as the object is no longer recognizable at first glance. However, simple reducing the inpaint or Gaussian blur intensity does not do the trick of reversing the cube back into object, there are two problems: the physical shape is decomposed under inpainting and illumination also looks weird, to address those two problems, I found a method called adaptive region sampling.

Step1: The process of this adaptive region sampling is as shown above, we first manually find the corner of the object, This process cannot be done using Harris Corner detection since the only corner we are looking for is the corner of our object, Harris would detect other corners in the image

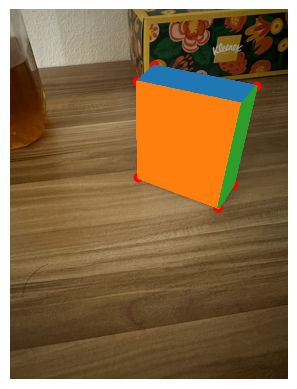

Step2: Using the manually annotated corners, we could get the visible surface, we would use this information to reconstruct the physical structure of the object

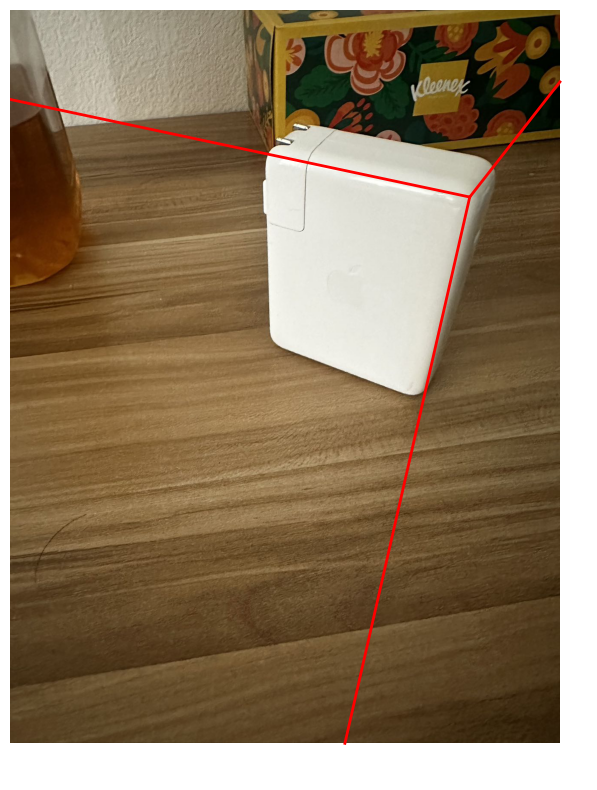

Step3: We extend the edge between the visible surfaces to make them touch the edge of the image. Those extended lines would help us segment the image

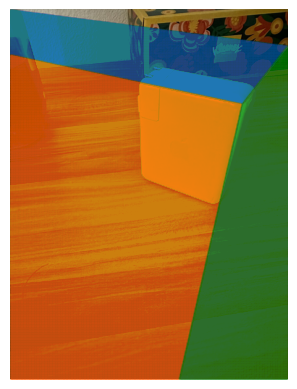

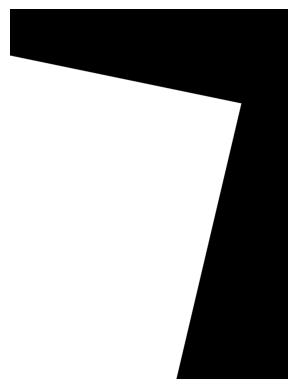

Step4: Using the boundary we found in Step3, we could segment our image into separate regions.

After finish the four steps above, we have the location of the visible surfaces and their corresponding selection regions. We could then sample a patch the same shape as the surface within the region to interpolate onto the target surface.

As shown in the example for 'orange surface' above, we do the sampling multiple times (I used 4-8 in my code), average the color for each pixel location, and blend it with the pixel of the target surface with a proportion alpha.

This method address the two issues we had before, since we are only sampling in a region that has similar illumination as our target surface, the result after blending is going to look nice illumination-wise. Since we reserved the physical structure of visible surface, as blending level become lower, the original object's physical strucure would become more and more clear.

Looking at the a=0.3 midway morphing image, we could see that the texture of the object is similar to the environment, the upper surface looks like the tissue box and the left surface looks like the wood table. The illumination looks correct, the right surface appear to be darker than the left surface. The physical structure of the object is also identifiable, only a little vague. This shows that our sampling method works!

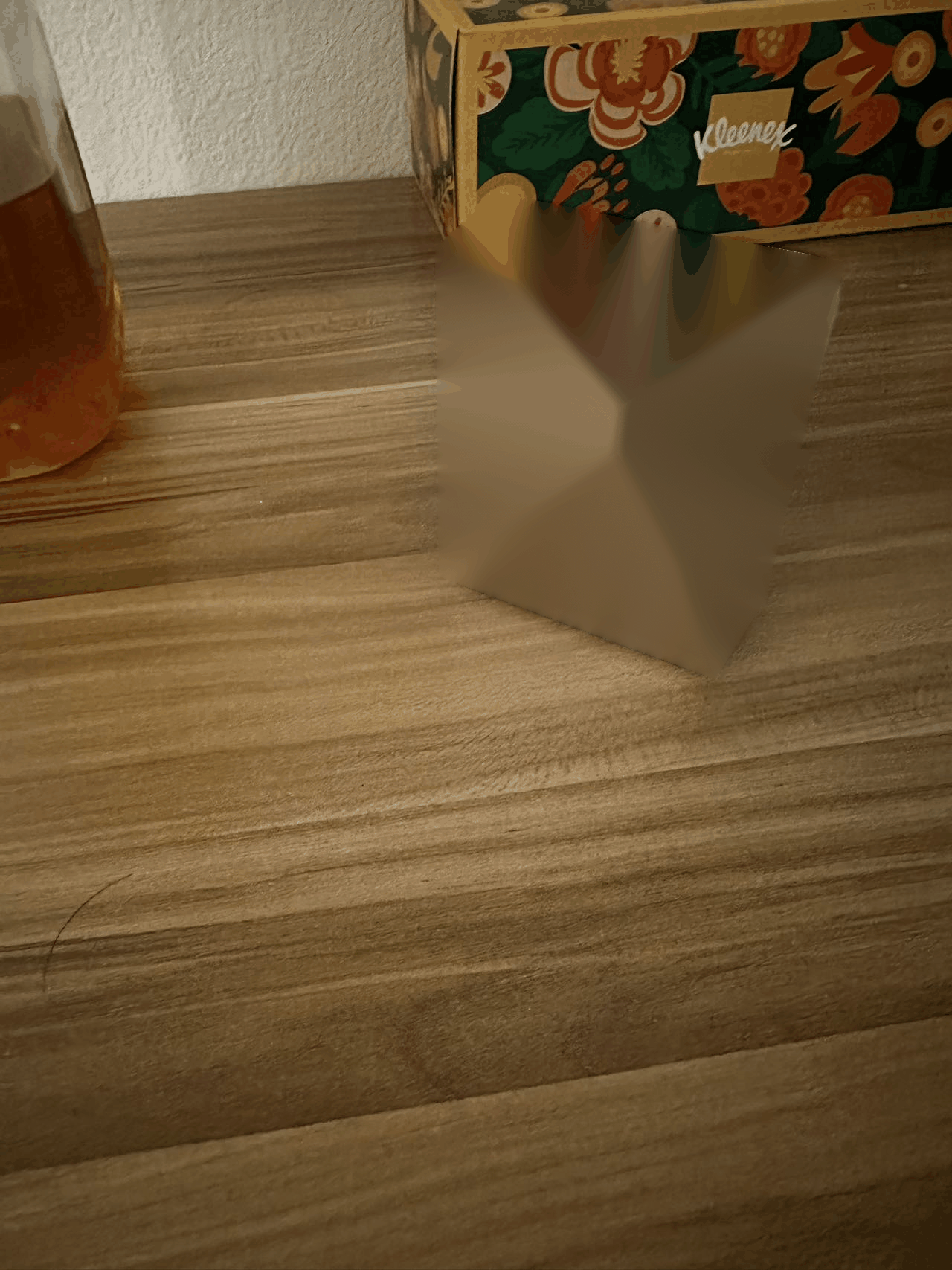

Using the method above, we could adjust alpha level and produce a sequence of frames as above!

With the 'morphed from background' object as the starting point, we could start to implement the rotation that rotates it into 3D!

Here is a short demonstration of morphing structure out of the background:

We recorded a short video of a Rubik's Cube with a moving camera. The shoot spans approximately 180 degrees, and the video was taken with flashlight turned on to minimize the shadow effect (although the result were not as effective as anticipated). Here are the video that were used as input in this project.

We will start with harris interest point detector to automatically detect corners (inherently good correspondence choice). While the math and algorithm is not trivial, I utilize skimage.feature.corner_harris for naive implementation. Here is a generic algorithm in Harris detector behind the scene:

1. Compute Gaussian derivatives at each pixel
2. Compute second moment 2x2 matrix M in a Gaussian window around each pixel
3. Compute corner response function f: \[f(x_i) = \frac{det(M)}{Trace(M)} = \frac{\lambda_1\lambda_2}{\lambda_1 + \lambda_2}\]
4. Threshold f

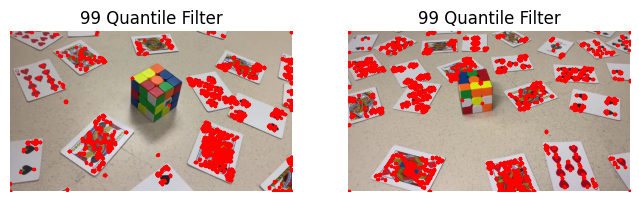

However, the raw output returns more than 45000 corners, which would have cover my entire image if I were to plot it on a figure! Instead, I apply the Percentile Filter and filter to corners with an h value above 99% percentile.
This is only for visualization because the next subsection in Adaptive Non-Maximal Suppression will sifted out most of them.

Segment Anything Model (SAM) is an advanced Segmentation Model developed by Meta. The AutomaticMaskGenerator provides masks without labeling. Due to time constraint, we did not implement semantic segmentation for automatic labeling. Instead, bounding box and SamPredictor were used to obtain a mask for the object and a mask for the floor.

Now we have a way to detect features just on the floor surface, we also want some good properties among the features! In particular, we want:

• Fixed number of features per image
• Spatially evenly distributed features

This motivates Adaptive Non-Maximal Suppression (ANMS), where I find the minimum suppression radius r_i for each features. Then 100 features with highest suppression radius are selected as the final subset. The idea of minimum suppression radius can be summarized in one phrase as "a distance to the nearest stronger keypoint." :)
The mathematical definition for the minimum suppression radius is \[ r_i = \min_j \, \lvert \mathbf{x}_i - \mathbf{x}_j \rvert, \quad \text{s.t.} \quad f(\mathbf{x}_i) < c_{\text{robust}} f(\mathbf{x}_j) \] where x_i, x_j are corner features, and f(x_i), f(x_j) are response values from harris corner.

I picked the same c_robust = 0.9 as in the paper to ensures that a neighbor must have significantly higher strength.

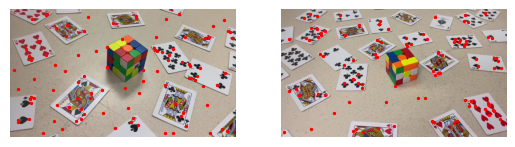

In the figure below, two arbitrary frames are choosen where I selected the top 100 features with desired properties.

Given all the corner features, we need to somehow describe the feature with feature descriptors. With rotation and perspective distortion factors involved, we implement Scale Invariant Feature Transform (SIFT) descriptor. It utilizes gradient field around a feature:

1. Divide the bigger patch into 16 smaller image patches
2. For each small image patch, generate a histogram of eight gradient orientations
3. Stack the 16 patches and obtained a 8*16 = 128 feature descriptor vector (after flattening)

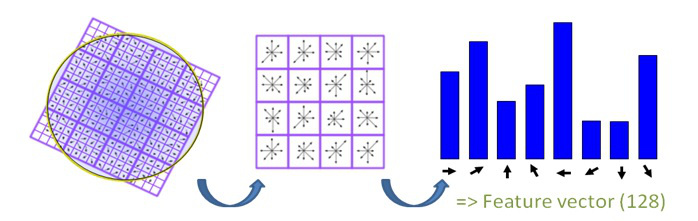

The figure below shows the mechanism behind SIFT.

Lastly, I will need to find pairs of features that look similar. This is acheived by first flatten feature descriptors into vectors of length 8x16 = 128. Then I can compute the l₂ norm among all combinations between the two images to find the nearest neighbor.

Yet the issue is that if only one neighbor is used, two patches can be similar by chance or due to noise. Here, I apply Lowe's trick and compute the ratio between L2 of the closest match and the L2 of the second-closest match. The idea is that if the ratio is small, then there is only one good match between the two features, which makes it more likely to be a true match!

With some empirical testing, a Lowe's ratio of 0.55 is used in this project

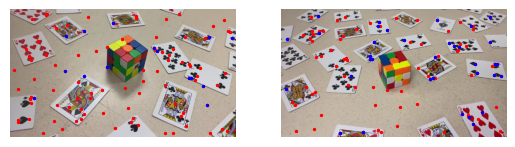

The figure below demonstrates the result after apply Lowe's trick. Points labels in blue are recognized as good matching features.

With appropriate thresholding, Lowe's trick helps us to remove most of the outliers. However, the algorithm never guarentees that it will only return true matches. This is where RANSAC comes in, which automatically find the correct homography based on the set of good matches returned in feature matching section. It does so by filtering out the outliers and keep the largest set of inliers. The algorithm proceeds as follows:

1. For some large n
   1. Select four feature pairs at random
   2. Compute the exact homography H
   3. Compute inliers where dist(x_j, Hx_i) < ε
   4. Keep largest set of inliers
2. Re-compute least-squares H estimate on all of the inliers

In the first stage, the homography is found on consecutive frames.
Then we compute cumulative homographies using the composition property. i.e. if H12 warp 1 to 2, H23 warp 2 to 3, then H13 = H23@H12 warp 1 to 3.

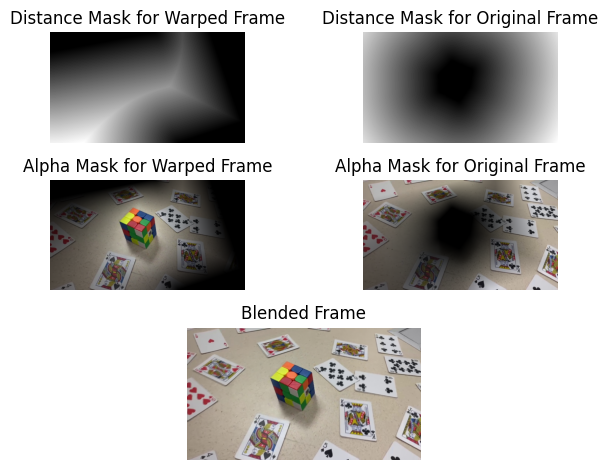

In previous steps, we actually computed the inverse homography. This avoids the need of splatting in forward warping and Griddata is used to obtain the color value. Additionally, bwdist is used to implement distance-based blending. With the weight provided by bwdist, we can create alpha mask with the formula: \[ a_1 = \frac{w_1}{w_1+w_2}, \quad a_2 = \frac{w_2}{w_1+w_2} \]

The outputted video are in 30 fps, both has around 550~650 frames.
